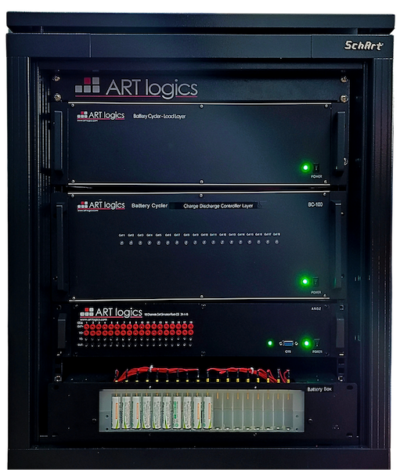

Battery Cycler
The battery cycler is a fully integrated test equipment designed to run battery or battery pack endurance tests / cycling tests. The equipment includes 18 isolated channels that can run the CV, CC, CR and CP charging and discharging tests with multiple charging and discharging sequences.
All it’s channels voltage, current and resistance adjustable input and output parameters can be controlled by software via Ethernet TCP.
Each channel also includes high precision voltage and current measurement loggers with 18 wires sense lines. The measured values and accessible by software.
Specifications
- 18 independent and isolated charge / discharge channels.
- Extendable number of channels.
- Each channel has a software controlled adjustable voltage output from 0V to 7V with a resolution of 1mV.
- Each channel has a current sourcing capability of 1A.
- Each channel has a software controlled electrical load adjustable from 4 Ω to 7k Ω.
