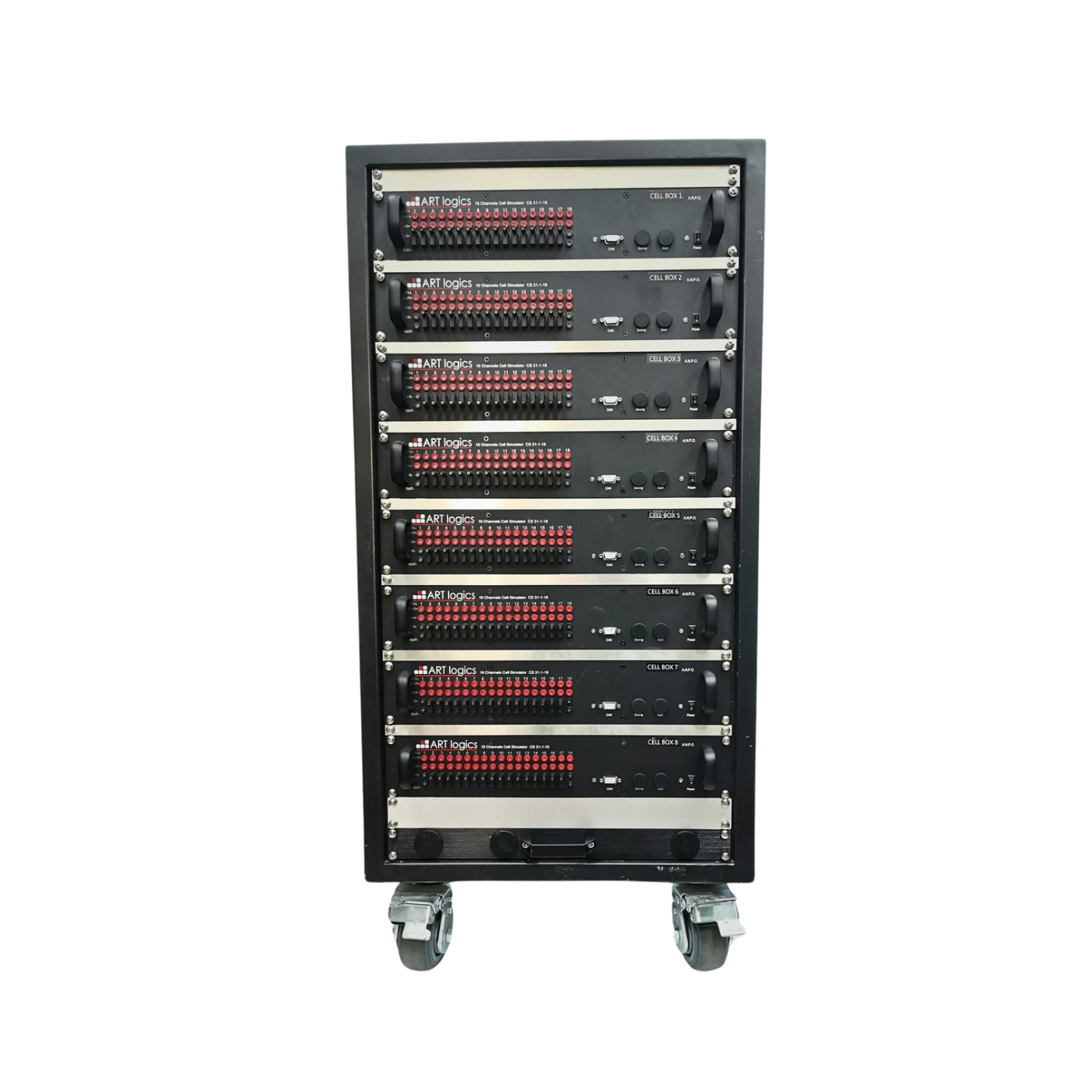

Cell Simulation Rack / Module
144 channels
The Cells Simulation Rack/Module is a battery simulator module with 144 isolated cells used to simulate battery features. The voltage of each cell can be adjusted through Standard CAN, Ethernet TCP and USB-C, as well as getting the voltage and the current measurements.
A single module can be used or several in series according to the requirements (based on how many cells are needed). Also, the module can be used independently or in a mountable rack system.
Specifications
- 144 independent and isolated cells in total.
- Extendable number of cells by adding more modules in series.
- Standalone module or bench rack mounted.
- Each cell has an adjustable output voltage of 0 V to 7 V with 1.0 mV precision.
- The current sourcing of each cell is up to 1 A.
- Voltage measurement with a precision of 0.4 mV.
- High current measurement with a precision of 1mA.
- Low current measurement with a precision of 20 uA.
- Controllable by CAN ISO 11898-2, Ethernet TCP and USB-C.
