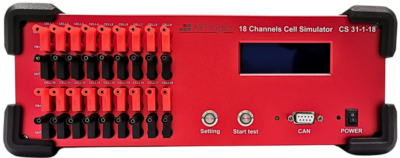

Cell Simulation Tester

18 channels

The 18 Channels Cell Simulator is a battery simulator module with 18 isolated cells used to simulate battery features. The voltage of each cell can be adjusted through Standard CAN, Ethernet TCP and USB-C, as well as getting the voltage and the current measurements.

A single module can be used or several in series according to the requirements (based on how many cells are needed). Also, the module can be used independently or in a mountable rack system.

ART logics also offer an application tool to use it easily or Labview vi for users to program easily.

Specifications

  • 18 independent and isolated cells in total.
  • Extendable number of cells by adding more modules in series.
  • Suitable for rack mounted bench.
  • Each cell has an adjustable output voltage of 0 V to 7 V with a precision of 0.5 mV.
  • The current sourcing of each cell is up to 1 A.
  • Voltage measurement with a precision of 0.4 mV.
  • Current measurement with a precision of 0.4 mA.
  • Optional integrated 8 NTC simulation channels.
  • Controllable by CAN ISO 11898-2, Ethernet TCP and USB-C.

DOWNLOAD

Datasheet
