Effortless BMS Testing with the ART Logics BMS Function Test Bench
Compact, efficient, and reliable: Your solution for accurate and flexible battery testing.

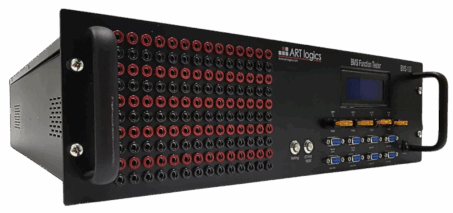

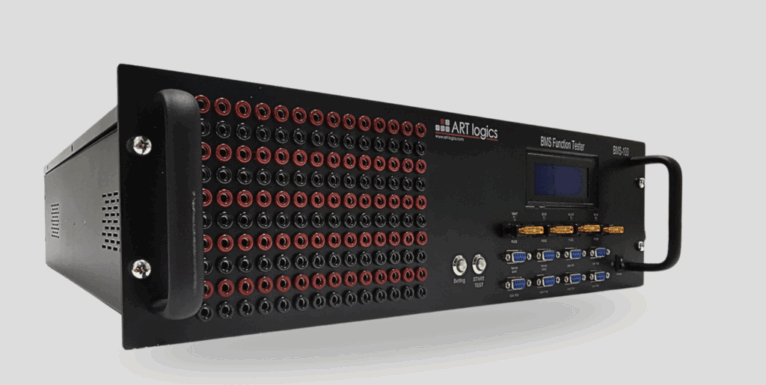

The ART Logics BMS Function Test Bench is an all-in-one standard load box designed for Battery Management System (BMS) testing. It provides a simple, ready-to-use solution that eliminates complex wiring setups, helping you quickly build a complete and reliable BMS test system.
Key Features:
- All-in-One BMS Testing:The BMS Function Test Bench provides all the excitation signals, communication interfaces, and power controls required for BMS validation.
- Simplified Setup & Operation :No need for complex wiring! This plug-and-play solution is designed for efficiency, reducing test preparation time and ensuring seamless integration into any BMS validation process.
- Extensive Signal Coverage:The test module supports:8 Analog Sensor Inputs (ADC);8 Voltage Output Channels;8 Frequency / PWM Output Channels;CAN & LIN Communication (Supports High-Speed CAN;CAN FD, and LIN 1.3, 2.0, 2.1);Digital Inputs/Outputs.
- High-Speed Communication & Diagnostics:With six CAN channels and multiple digital and analog inputs, this module enables real-time monitoring and diagnostics of BMS test cases, ensuring precise and reliable testing.
- Robust & Scalable Design: Designed for standard rack integration (3U size), the unit is modular and can be expanded to fit specific test needs.
- Easy Control & Automation:Ethernet & USB Interfaces for seamless connectivity;User-Friendly Software with Graphical UI, C# API, and LabVIEW VIs;Programmable Test Sequences for embedded automated testing.
What Makes This Test Bench Unique?
Unlike traditional setups that require multiple separate devices, this compact and integrated module combines all the necessary test signals for BMS validation—excluding cell simulation and NTC signals, which ART Logics provides as separate specialized modules. Together, they form a comprehensive BMS test system.
Use Cases
Production & R&D
Test BMS safety under real-world conditions like overvoltage or thermal fluctuations.
Automotive Battery Testing
Fine-tune cell balancing algorithms to optimize efficiency.
Energy Storage Systems
Measure quiescent current for low-power applications with precision down to 10μA.
How This System Enhances BMS Testing
Saves Time
Reduces Errors
Improves Efficiency
Compatible with Full BMS Test System
Upgrade Your BMS Testing Today!
- Eliminate wiring complexity.
- Ensure precise signal monitoring.
- Optimize your BMS validation process.Text content
