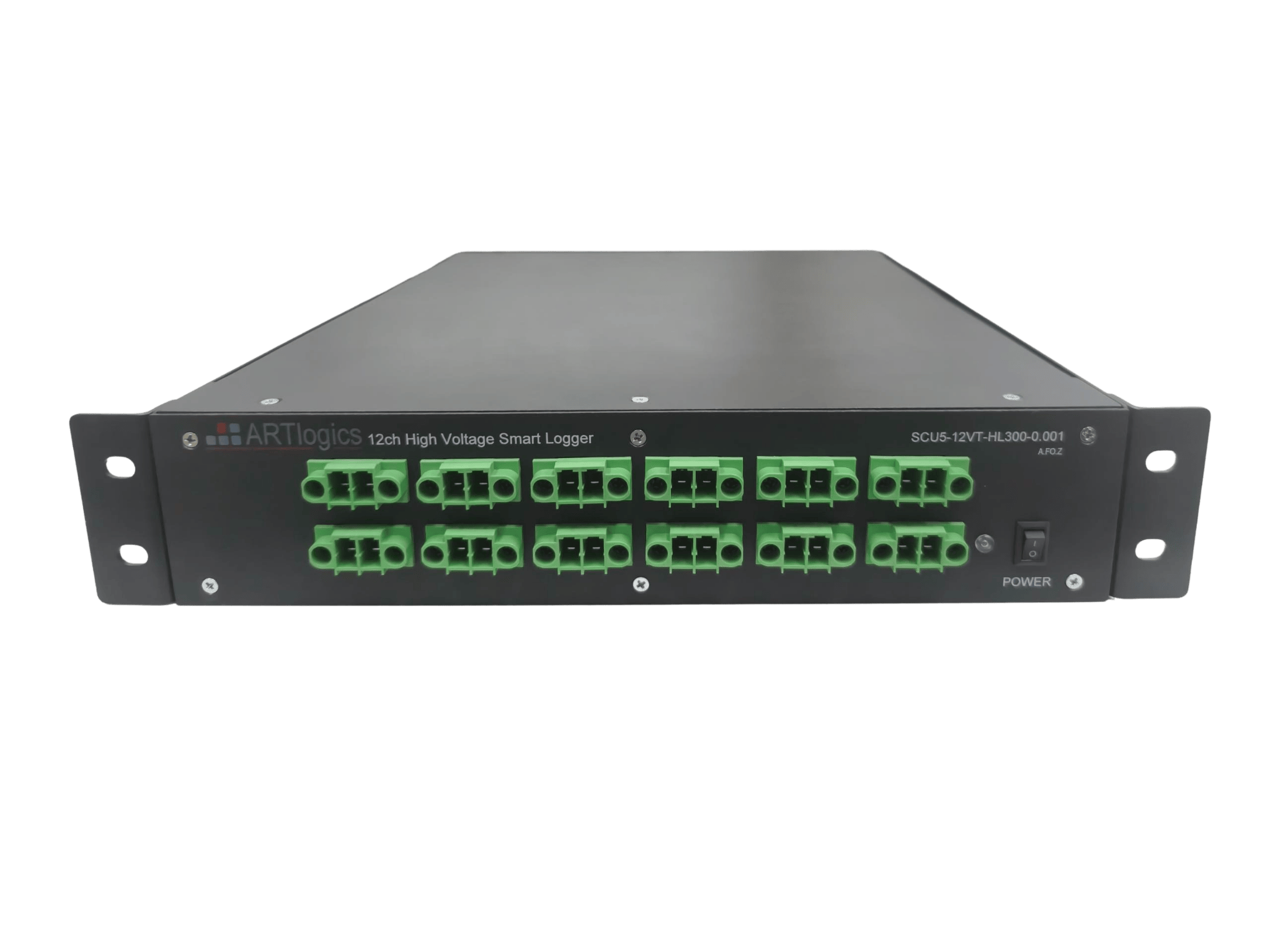

12CH High Voltage
Smart Logger:
SCU5 – 12VT-HL.300-0.001
The SCU5-12 Channel High-Voltage Smart logger provides 12 channels of differential real-time voltage measurement with 16-bit precision and a sampling rate of up to 100 kHz (upgradable to 1 MHz). For each voltage input channel, the SCU5 supports independent configuration of parameters such as data rate, total acquisition period, trigger options, etc.
Users can choose to use Ethernet TCP, USB-C, or RS-232 as
the communication interface to configure channel
parameters and monitor measurement data. Furthermore,
the SCU5 can operate independently via a built-in SD card.
Specifications
- 12 channel differential voltage input measurement
- 12-channel temperature measurement
- 100kHz data sampling rate
- Selectable voltage input range -/+300V
- Ethernet TCP, USB-C, and RS-232 communication interfaces
- Built-in SD card for storing configurations and data acquisition
- Software or external signal trigger
- C# and LabVIEW API provided
- External synchronization clock available.

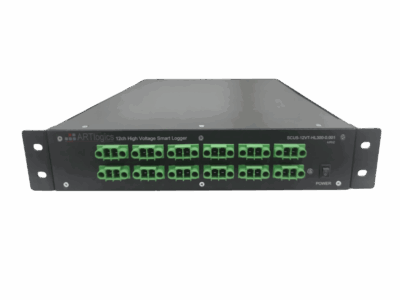

12CH High Voltage Smart Logger
SCU5 – 12VT-HL.300-0.001
The SCU5-12 Channel High-Voltage Smart logger provides 12 channels of differential real-time voltage measurement with 16-bit precision and a sampling rate of up to 100 kHz (upgradable to 1 MHz). For each voltage input channel, the SCU5 supports independent configuration of parameters such as data rate, total acquisition period, trigger options, etc.
Users can choose to use Ethernet TCP, USB-C, or RS-232 as the communication interface to configure channel parameters and monitor measurement data. Furthermore, the SCU5 can operate independently via a built-in SD card.
Specifications
- 12 channel differential voltage input measurement
- 12-channel temperature measurement
- 100kHz data sampling rate
- Selectable voltage input range -/+300V
- Ethernet TCP, USB-C, and RS-232 communication interfaces
- Built-in SD card for storing configurations and data acquisition
- Software or external signal trigger
- C# and LabVIEW API provided
- External synchronization clock available.
