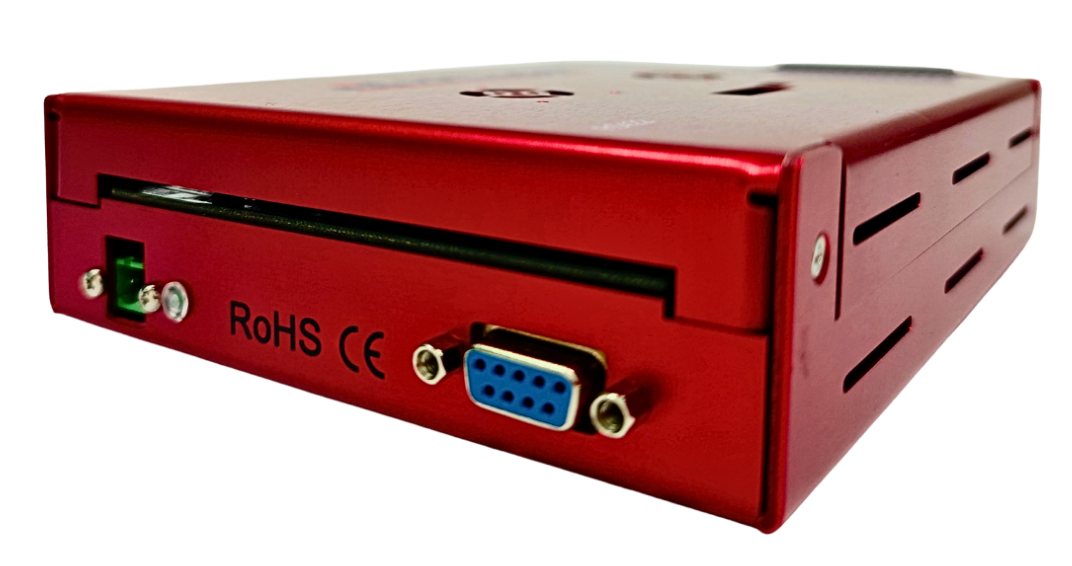

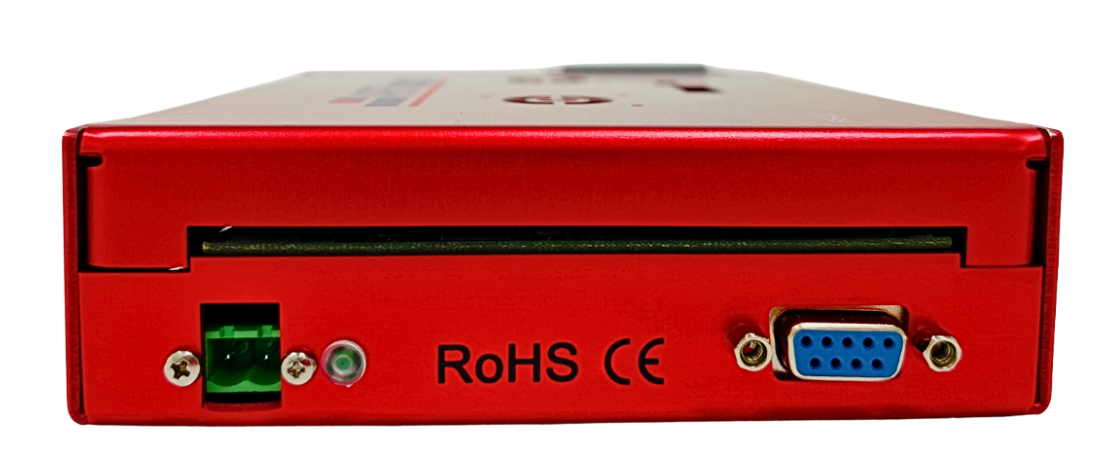

SCU5

Fast Sampling Product

The SCU5 Fast Sampling Product offers 16 channels of differential real time voltage measurement, with a precision of 16 bits and a sample rate up to 100 kHz. The SCU5 supports a wide range of programmable configuration parameters for each voltage input channel, for example the data rate, the total period of acquisition, the trigger option, etc.

Three operation modes:

1. Single sampling mode

Manual sampling test, you can sample a period for multi-channels.

2. Long term sampling mode

Long term sampling test, you can sample without a stop timing until click stop.

3. Trigger sampling mode

For trigger test to capture special signal, you can connect a digital control to smart logger then it will start sampling as trigger.

The user has the option to use the Ethernet TCP, USB-C or RS-232 as a communication interface to set the configuration of the channels and get the measurement data. In addition, The SCU10 is able to run in a standalone mode with the built in SD Card.
