Loggers

SCU10 Series

The SCU10 Fast Sampling Product offers 4/8/16 channels of differential real time voltage measurement, with a precision of 16 bits and a sample rate up to 100 kHz (upgradable to 1 MHz). The SCU10 supports a wide range of programmable configuration parameters for each voltage input channel, for example the data rate, the total period of acquisition, the trigger option, etc.

The user has the option to use the Ethernet TCP, USB-C or RS-232 as a communication interface to set the configuration of the channels and get the measurement data. In addition, The SCU10 is able to run in a standalone mode with the built in SD Card.

Specifications Creating Digital Experiences


  • 4/8/16 channels differential voltage /current /temperature input measurement.
  • Each channel can be configured individually.
  • 16 bits ADC.
  • 100 kHz Data sample rate.
  • Selectable voltage input range -/+ 10V or -/+ 40V.

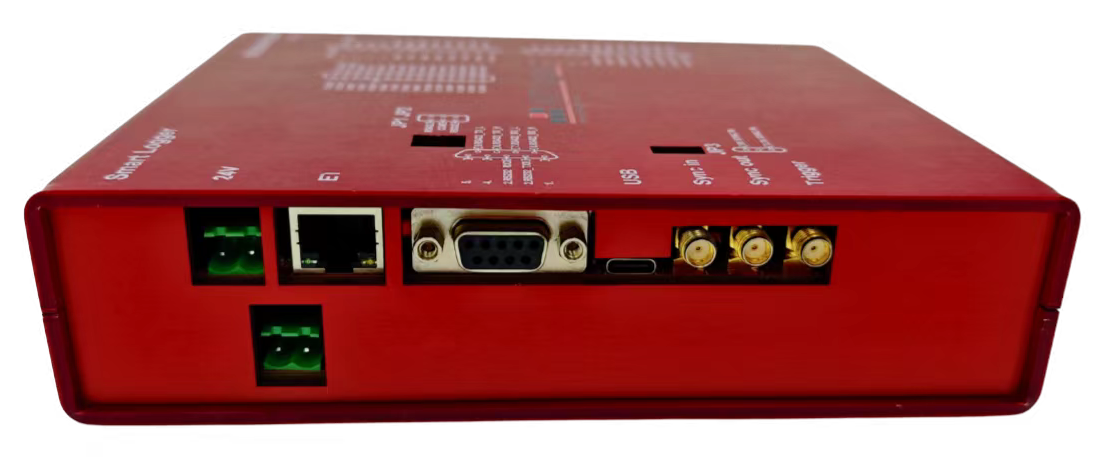

  • Ethernet TCP, USB-C and RS-232 communication interfaces.
  • Output of Digital/Analog/Frequency/CAN is up to 8 channels.

  • Built in SD Card to store the configurations and data acquisitions.
  • Software defined and external trigger signals support.
  • Ready to use C# and LabVIEW APIs.
  • External clock reference for synchronization.
  • Can run the testing without PC.

Loggers

SCU10 Series

The SCU10 Fast Sampling Product offers 4/8/16 channels of differential real time voltage measurement, with a precision of 16 bits and a sample rate up to 100 kHz (upgradable to 1 MHz). The SCU10 supports a wide range of programmable configuration parameters for each voltage input channel, for example the data rate, the total period of acquisition, the trigger option, etc.

The user has the option to use the Ethernet TCP, USB-C or RS-232 as a communication interface to set the configuration of the channels and get the measurement data. In addition, The SCU10 is able to run in a standalone mode with the built in SD Card.

Specifications Creating Digital Experiences


  • 4/8/16 channels differential voltage /current /temperature input measurement.
  • Each channel can be configured individually.
  • 16 bits ADC.
  • 100 kHz Data sample rate.
  • Selectable voltage input range -/+ 10V or -/+ 40V.
  • Ethernet TCP, USB-C and RS-232 communication interfaces.
  • Output of Digital/Analog/Frequency/CAN is up to 8 channels.

  • Built in SD Card to store the configurations and data acquisitions.
  • Software defined and external trigger signals support.
  • Ready to use C# and LabVIEW APIs.
  • External clock reference for synchronization.
  • Can run the testing without PC.

DOWNLOAD

Datasheet

Datasheet

Demo software

Demo software

User Manual

User Manual

APPLICATION

  • Sensor Data Acquisition
  • Industrial Measurement and Control
