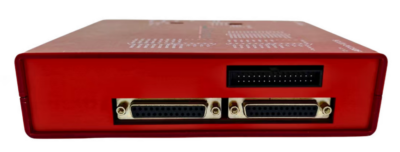

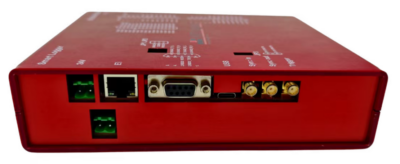

SCU20
Fast Sampling Product
The SCU20 Fast Sampling Product offers voltage, current and frequency measurement channels. It supports a wide range of programmable configuration parameters for each input channel, for example the sampling rate, the total period of acquisition, the trigger option, etc.
The user has the option to use the Ethernet TCP, USB-C or RS-232 as a communication interface to set the
configuration of the channels and get the measurement data. In addition, The SCU20 is able to run in a standalone mode with the built in SD Card.
Specifications
- 8 channels differential voltage measurement with 1 MHz maximum sampling rate.
- 8 channels current measurement with 1 MHz maximum sampling rate.
- 8 channels counter and frequency measurement.
- Real time DSP applications on the measured signals.
- Ethernet TCP, USB-C and RS-232 communication interfaces.
- Software defined and external trigger signals support.
- Ready to use C# and LabVIEW APIs.
- External clock reference for synchronization.
- Built in SD Card to store results.
