24 Channels 5A Cell simulation with Fault simulation
CS31-5-24/FS-24-5

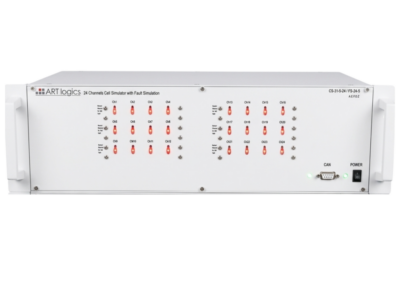

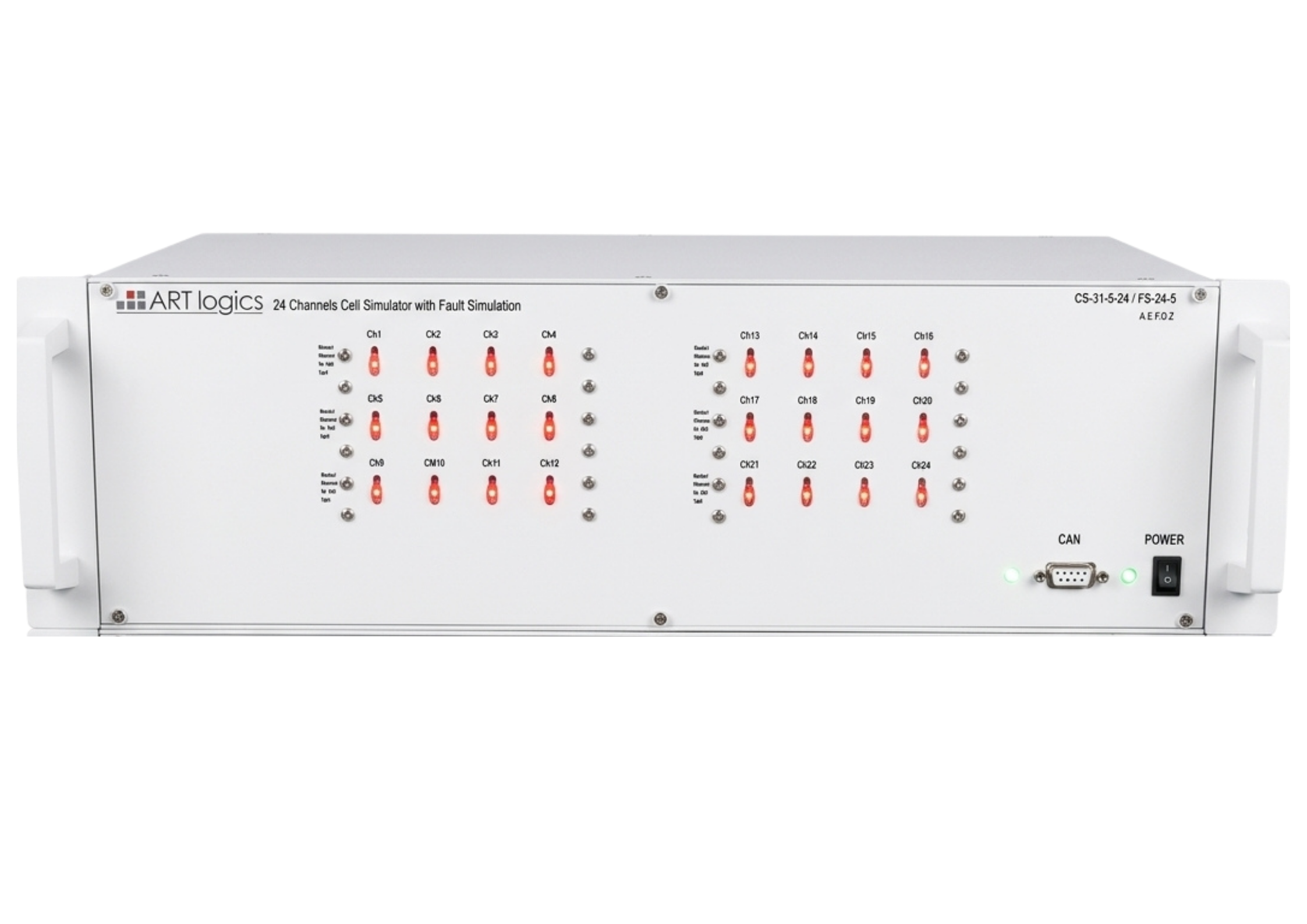

The Cells Simulation Rack/Module is a battery simulator module with 24 isolated cells used to simulate battery features. The voltage of each cell can be adjusted through Standard CAN, Ethernet TCP and USB-C, as well as getting the voltage and the current measurements.
A single module can be used or several in series according to the requirements (based on how many cells are needed). Also, the module can be used independently or in a mountable rack system.
Specifications
- 24 independent and isolated cells in total
- Extendable number of cells by adding more modules in series.
- Standalone module or bench rack mounted.
- Each cell has an adjustable output voltage of 0V to 5V with 1.0 mV precision.
- The current sourcing of each cell is up to 1 A/5A. Voltage measurement with a precision of 0.4mV.
- High current measurement with a precision of 1mA.
- Low current measurement with a precision of 20uA.
- Rise time for all 24 channels <1ms.
- Controllable by CAN ISO 11898-2, Ethernet TCP & USB-C.
- Support the RTDS HIL System protoctol.
- Ready to use C#,labVIEW APIs and Veristand CD.
- Fault simulation status LED Indicators.
- Faullt simulation modes: Short / Open Circuit, Reversed.
- (Optional) 28 to 72 NTC channels with adjustable output resistance simulation from 0 Ω to 8.1Ω with 1Ω steps.
24 Channels 5A Cell simulation with Fault simulation
CS31-5-24/FS-24-5
The Cells Simulation Rack/Module is a battery simulator module with 24 isolated cells used to simulate battery features. The voltage of each cell can be adjusted through Standard CAN, Ethernet TCP and USB-C, as well as getting the voltage and the current measurements.
A single module can be used or several in series according to the requirements (based on how many cells are needed). Also, the module can be used independently or in a mountable rack system.
Specifications
- 24 independent and isolated cells in total
- Extendable number of cells by adding more modules in series.
- Standalone module or bench rack mounted.
- Each cell has an adjustable output voltage of 0V to 5V with 1.0 mV precision.
- The current sourcing of each cell is up to 1 A/5A. Voltage measurement with a precision of 0.4mV.
- High current measurement with a precision of 1mA.
- Low current measurement with a precision of 20uA.
- Rise time for all 24 channels <1ms.
- Controllable by CAN ISO 11898-2, Ethernet TCP & USB-C.
- Support the RTDS HIL System protoctol.
- Ready to use C#,labVIEW APIs and Veristand CD.
- Fault simulation status LED Indicators.
- Faullt simulation modes: Short / Open Circuit, Reversed.
- (Optional) 28 to 72 NTC channels with adjustable output resistance simulation from 0 Ω to 8.1Ω with 1Ω steps.
