EIS Simulator

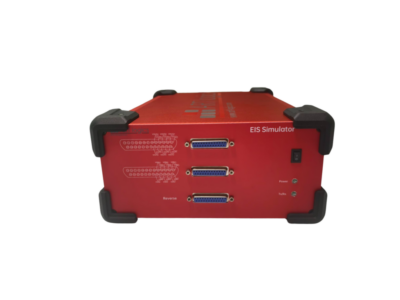

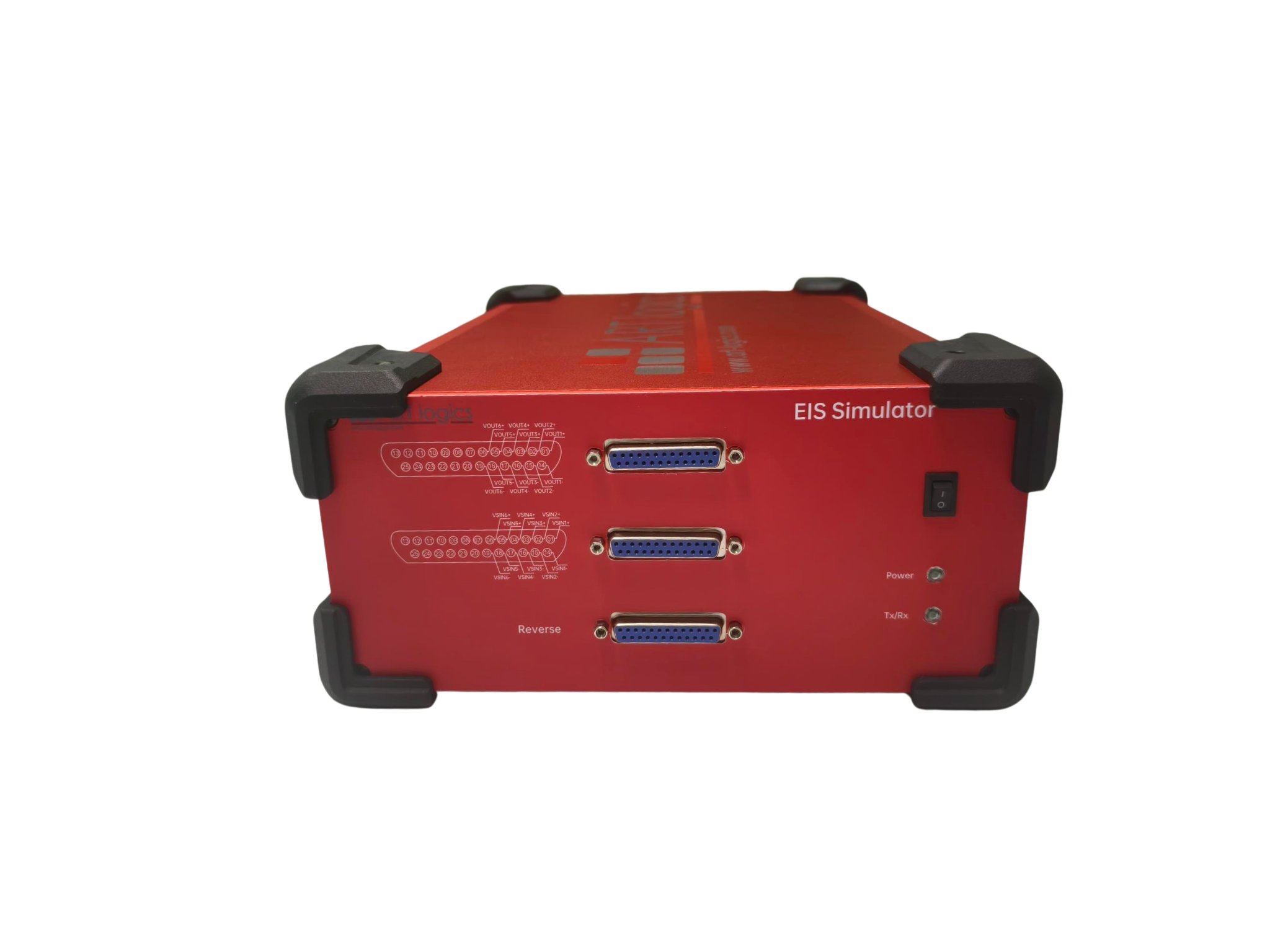

The EIS Simulator is a battery internal impedance simulator board used to simulate cell response with AC excitation current applied. This board contains 6 isolated channels that can be controlled or adjusted by software via CAN, Ethernet TCP and USB-C. A single board can be used or several in series according to the requirements (based on how many cells are needed). The DC voltage, AC amplitude, frequency and phase for each EIS channel can be controlled by software.
Specifications
- 6 independent channels that can generate sine wave up to 1kHz.
- 0~7V DC output, 5mV Vp-p AC output.
- Controllable by CAN, Ethernet TCP and USB-C.
How to use videos:
1.Equipment-and-set-up-presentation.
2.Configuration-of-the-EIS-and-Ioffer-equipments-and-start-of-the-EIS-signals
3.Configuration-of-the-logger-and-signals-acquisition
4.Software-replay-of-the-acquired-siganls-by-the-logger
